DESIGN AND ENGINEERING



CAD Stations:



(3) DUAL QUAD CORE PROCESSOR PC WORKSTATIONS

(2) DUAL PROCESSOR PC WORKSTATIONS

USING: - SOLID WORKS



 - AMT

 TOOL DESIGNER, ExpertCAM & PROSPECTOR

IGES, DXF,DWG,PRT,STEP &

CADRA DATA TRANSLATIONS

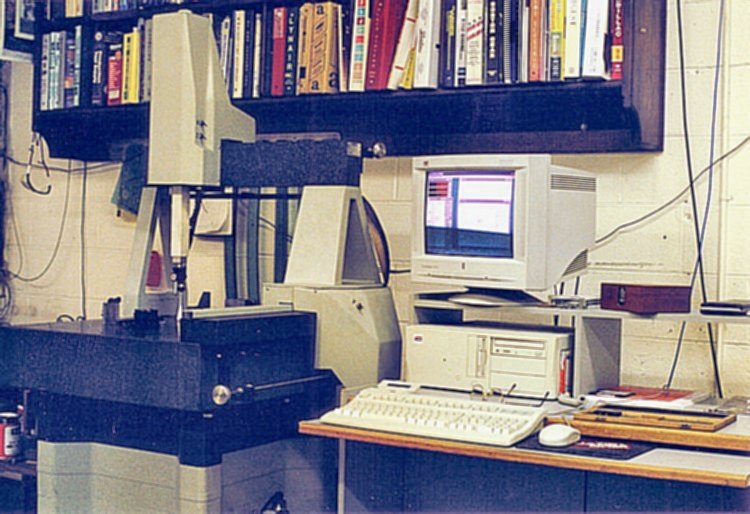

CMM

(1) brown & sharpe

EXCEL 7-10-7.

Serial #1095-345

pc dmis 7.3 SOFTWARE

RENISHAW PH9 DCC PROBE HEAD

RENISHAW TP2 5 WAY

41.5" X 65" X 8" GRANITE TABLE





(1) NUMEREX 15" X 18" X 10" Travels

Model #1518-10 MNL. GR.

Part #26-0204

Serial #CMM890900529

METRONIC SOFTWARE

RENISHAW PH1 PROBE HEAD

RENISHAW TP2 5 WAY

28" X 32" X 6" GRANITE TABLE

Plotter:

(1) HP Designjet T1300 Large format printer



Misc:

(1) OZLID-PRINTVAC 1905 Ammonia blue print copy machine



(2) Large Drafting boards with machines



SHOP





CNC:

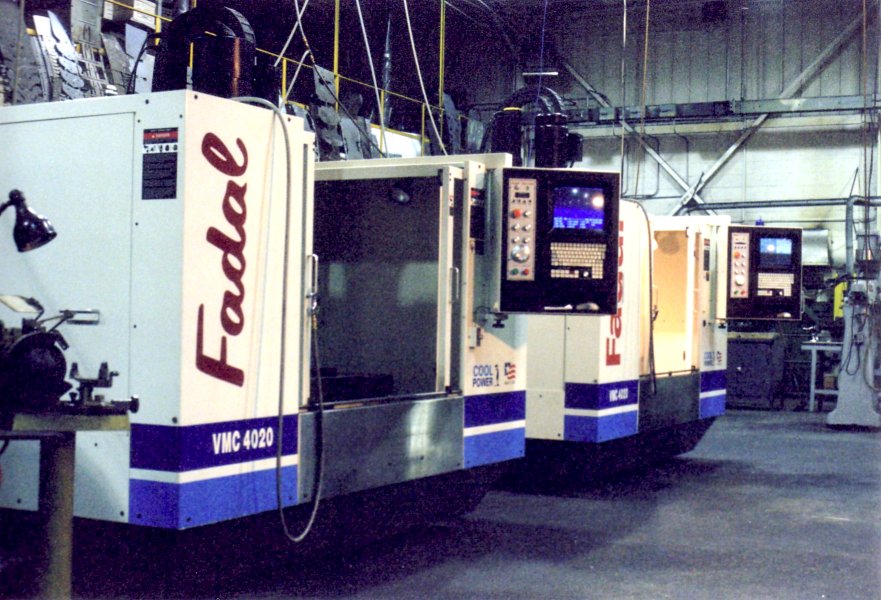

(2) FADAL  4020 Vertical machining centers new in 1999 & 2002



(1) FADAL  6030 Vertical machining center new in 2005



EDM:

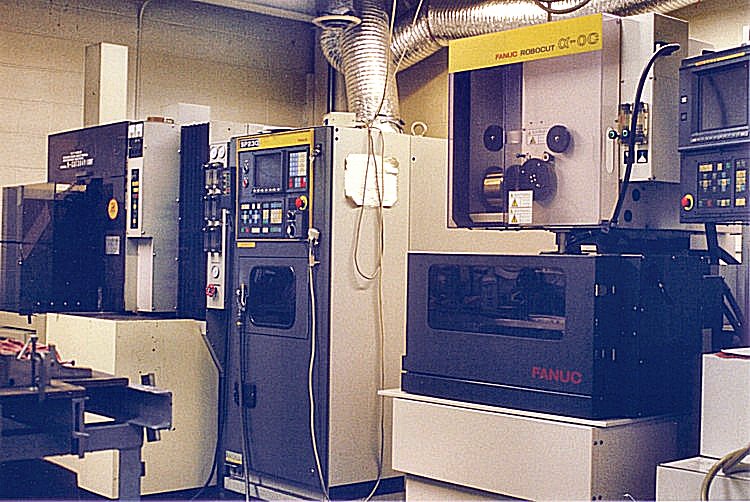

(1) Hitachi H-Cut 304P wire E.D.M.



(1) FANUC Submersible wire E.D.M.



Mills:



(1) CINCINNATI model 4  horizontal milling machine Twin dial 1300 RPM 16” X 79” Power feed table & knee

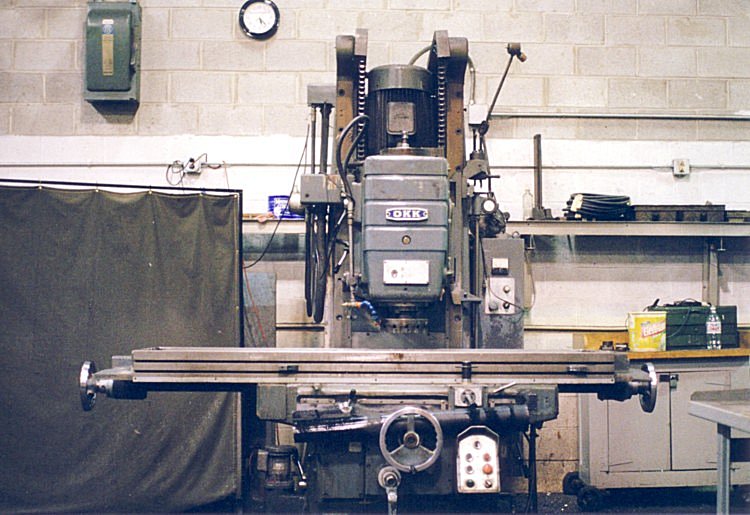

(1) OKK model MH-4V/P Vertical milling machine 17-3/4” X 78-3/4” Power feed Production table, 22 to 1400 RPM spindle speeds Turret depth stop on head travel

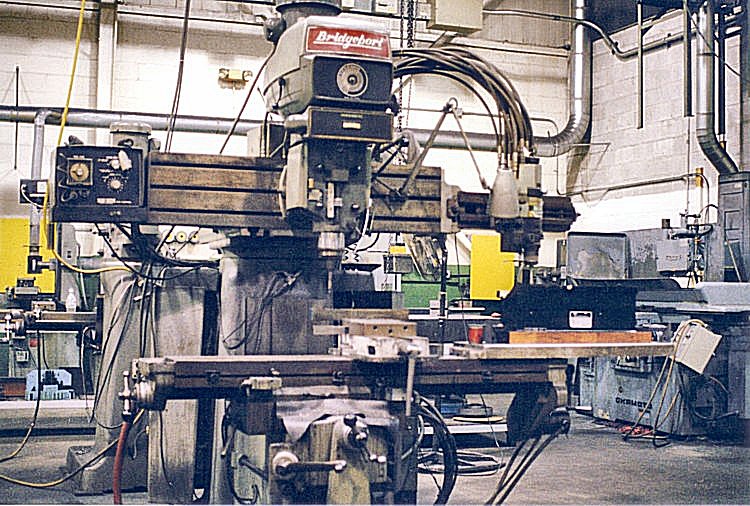

(1) BRIDGEPORT series II 4 hp. Vertical T-Ram duplicating milling machine 11” X 58” Power feed table 11” X 48” T-Ram True-Trace pick tracer controls, True-Trace Model 1 115, 360% Tracer Transducer





(1) BRIDGEPORT 2 hp. Variable speed Vertical milling machine 9” X 42” hand feed table, ACU-RITE III, 2-axis digital readout



(2) BRIDGEPORT series I, 2 hp. Variable speed Vertical milling machines 9” X 42” hand feed table



(2) BRIDGEPORT series I, 2 hp. Variable speed Vertical milling machines 9” X 42” Power feed tables w/digital readouts



Radial drills:



(1) CARLTON 4’ arm X 11" column

radial arm drill, 33" X 56" table



(1) CINCINNATI-GILBERT 4’ arm X 11" column

radial arm drill



Drill presses:



(1) CARLTON 4’ arm X 11" column

radial arm drill, 33" X 56" table



(1) CINCINNATI BICKFORD Super service 24" sliding head drill press 18" X 28" work table



(2) POWERMATIC MODEL 1200, 20" floor type drill press’s 6" hand feed quill 24" X 40" overall table



(1) CINCINNATI BICKFORD 21" drill press



(1) BUX Magnetic base drill



Band saws:



(1) DOALL Model 3613-1, 36" vertical metal contour cutting table saw 26" X 26" X 45° tilt power feed table



(1) MARVEL series 8, Mark II power feed vertical metal cutting band saw 24" X 33" work table, variable speed saw head drive, variable speed blade drive



Bench Press:



(1) RED ARROW hand operated 40 ton hydraulic bench type press



Welders:



(1) MILLER MODEL 330A/BP, 300-AMP AC/DC gas arc welder



(1) LINCOLN MODEL #AC 225 AMP welder



Sanders:



(1) POWERMATIC MODEL 30 combination 6" vertical belt and 12" horizontal disk sander



(1) POWERMATIC MODEL 30B combination 6" vertical belt and 12" horizontal disk sander



(1) DELTA ROCKWELL 14" vertical / horizontal disk sander

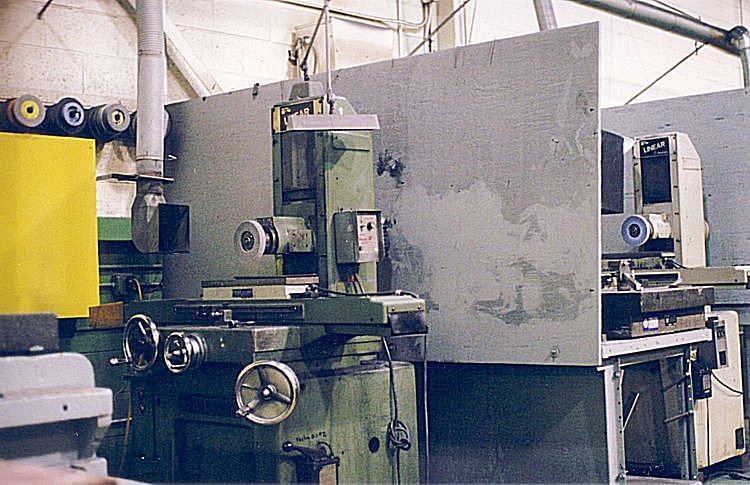

Grinders:



(1) MOORE MODEL G-18, Jig grinder, 40,000 rpm spindle, 11"x24" table, (power feed) DRO, rotary table & microsine tabl



(1) OKAMOTO MODEL 1632N, 16" X 32" C.C. hydraulic wet surface grinder



(1) OKAMOTO MODEL PFG-618, linear 6" X 18" hand feed surface grinders



(4) REID MODEL 1026, 6" X 18" hand feed roller-way surface grinders



(1) BALDOR MODEL 1215W, 12" double end pedestal type grinder 2 hp.



(1) BOYAR-SCHULTZ MODEL 2, vertical profile grinder 1 hp.



Shaper:



(1) CINCINNATI 20" standard V-Ram shaper



Lathe:



(1) CLAUSING-COLCHESTER 15" X 54" C.C. quick change, geared head lathe, power saddle, thread chasing, dial micrometer stops, hole thru spindle, 2000 RPM

Surface Plates:

(1) 6" x 36" x 48" black granite surface plate - Grade A w/steel stand



(3) 4" x 24" x 36" black granite surface plate - Grade A



(2) 5" x 24" x 36" 2-ledge black granite surface plate - Grade A



(1) 4" x 24" x 24" black granite surface plate - Grade A w/steel stand



(1) 68" X 36" cast iron ribbed surface plate w/steel stand



PRECISION INSPECTION EQUIPMENT:



(2) MITUTOYO 79 pc. gage block set with case



(2) MITUTOYO 85 pc. gage block set with case



(1) 73 PC. pc. gage block set with case



(1) MITUTOYO NO. 192-116, 12" dial type height gage



(2) SETS VERMONT series B plus gage pins .061 TO .250 & .251 TO .500



(2) COMPOUND MAGNA sine's 6" X 10"



Many more Including:

micrometer sets, Height gages, whirligigs, demagnetizers, bench plates, small granite surface plates, radius dressers, v-blocks, sine plates, angle plates, high speed grinding attachments, etchers, ect.





Material handling:

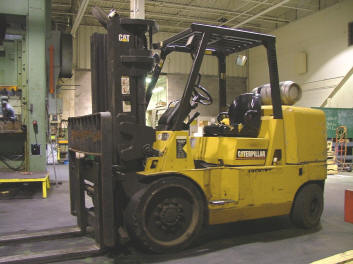

(1) CATERPILLAR model GC70K-LP 16,500 lb. Capacity, 148" lift, side shift, L.P. gas fork lift truck new 1999



(1) HYSTER approx. 5000 lb. capacity L.P. gas fork lift truck



(1) ALLIS CHALMERS model ACC120 LPS 10,000 lb. capacity L.P. gas fork lift truck

(1) ECONOMY style battery operated die lift cart



(4) PORTABLE hydraulic die lift carts



(1) MULTI-TON portable lift pallet mover



(1) SHAW BOX 7 1/2-ton capacity, pendant controlled crane



(5) COFFING 3-ton capacity pendant controlled electric hoists



(2) C M 3-ton capacity pendant controlled electric hoists



(1) COFFING 5-ton capacity pendant controlled electric hoists





(1) COFFING 2-ton capacity pendant controlled electric hoists



(1) NORTH AMERICAN 5-ton capacity, single girder, 6-way over-head crane



TRY-OUT PRESSES:



(1) CLEARING-NIAGRA SE2-84-48 chief press, 300 ton, 84" x 48" bed area, 8" stroke, 0-70 spm variable, 32" shut height, 11" adj. 20" x 32" window w/coil feed equipment (1996)



(1) VERSON 300 ton S.S.D.C. 60" x 108" bed area, 30" shut height, 12" stroke, 32" x 36" window w/coil feed equipment



(1) CLEVELAND 200 ton, 48" x 84" bed area, 24" shut height, 12" stroke, 6" x 16" window



(1) TOLEDO 200 ton, 48" x 84" bed area, 36" shut height, 12" stroke, 6" x 12" window



(1) ROUSSELE 150 ton, open back gap press, 30" x 50" bed area, 35 spm, 36" shut height, 6" stroke (1978)



(1) ROUSSELE 150 ton, open back inclinable gap press, 30" x 50" bed area, 35 spm, 21" shut height, 8" stroke (1975)



(1) TOLEDO 135 ton S.S.D.C. 48" x 84" bed area, 32 1/2" shut height, 16" stroke



(1) ROUSSELE 110 ton, open back inclinable gap press, 28" X 40" bed area, 45 spm, 20" shut height, 6" stroke (1975)



1) CLEARING P-50-H, 50 ton, gap press, 28" x 36" bed area, 6" stroke, 60  spm, 11"-20" shut height



(1) TOLEDO No.91F 60 ton press 32" x 54" bed area,



OTHER MACHINERY:



(1) SULLAIR LS-16BS-60L ACAC, 60 hp rotary screw air compressor



(1) DRESSER/LeROI model 3055B, 30 hp rotary screw air compressors



(1) GREAT LAKES GRF-800, 4 hp air dryer



(1) ROTO FINISH RTC-1020-CB18 parts washer

(1) WEIGHT-TRONIX 8258 digital floor scale 48" x 60"



(2) PORTABLE oxygen/acetylene outfit



(1) PORTABLE power lubrication unit



(1) HECK MODEL 3, bench type, motorized, trace-a-punch



(1) SUNNEN MODEL MBB-1650, precision hone



(1) AGET MODEL FT-40, tube and duct work style, dust collection system
